| Model Year | 2026 |
|---|---|
| Options | XS Silk Warm Slate Grey (Black) (Item# 4711256522456 R914) In Stock (Warehouse) S Silk Warm Slate Grey (Black) (Item# 4711256514253 R915) In Stock (Warehouse) M Silk Warm Slate Grey (Black) (Item# 4711256522463 R916) In Stock (Warehouse) L Silk Warm Slate Grey (Black) (Item# 4711256522470 R917) In Stock (Warehouse) |

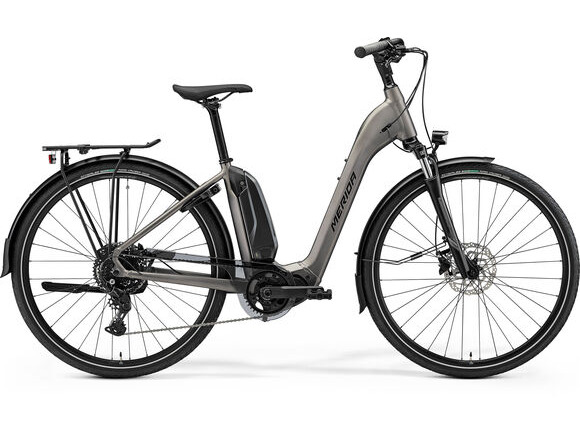

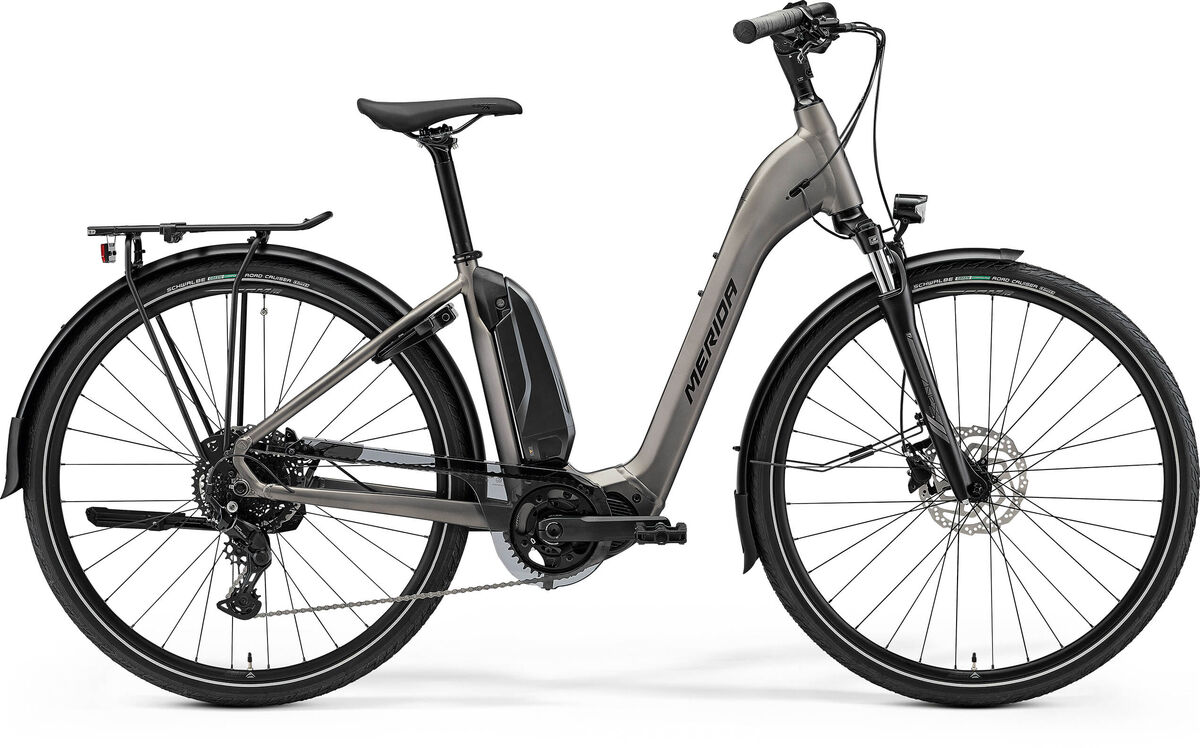

| Style | Fully equipped low step through eBike with mudguards rack kickstand lock and lights. Powered by Shimano EP5 40Nm motor with 418Wh battery. 9 Gears.The eSpresso City has one of the lowest widest step throughs available. It's the perfect partner for urban riding offering comfort and practicality. Standard-fit mudguards lights lock rack and kickstand mean you're ready to go from the moment you leave the shop. Fast rolling 700c wheels are perfect for use in town on gravel tracks or cycle paths. Wide tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light. Strong but controllable hydraulic disc brakes help you to stop with ease. All electric bikes have an approved rider and equipment weight of up to 150 kg meaning there's plenty of capacity for you and your luggage. |
| Frame | City Lite- Hydroformed 6066 triple butted aluminium, external battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 42c with mudguards |
| Forks | SR Suntour NEX E25; Coil; 63mm travel |
| Rear Derailleur | Shimano CUES U4000 |
| Shifters | Rear: Shimano CUES U4000 |
| Chainset | Samox NWP203 ; 38 tooth chainset; Crank: Merida Expert TK; 165mm |
| Chain | KMC xGlide |
| Freewheel/Cassette | Sunrace CSU9; 11-42 teeth; 9 Speed |
| Headset | Merida 2346 Neck |
| Stem | Merida Expert; material: aluminium; 31.8mm diameter; adjustable; length: (XS-M) - 90mm, (L-XL) - 110mm |
| Handlebars | Merida Expert; material: aluminium; 640mm wide; 35mm rise |
| Front Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT-200; 2 piston with Shimano RT10; 180mm |
| Rims | Merida Comp TK; 20mm inner rim width; material: aluminium |
| Front Hub | Shimano QC300; 100x9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TC500; 142x12mm; 32 spoke; Centerlock |
| Spokes | Black stainless ; black nipples |
| Tyres | Schwalbe Road Cruiser; 28x1,75; wired; reflecting line |
| Saddle | Merida Comp TK |
| Seatpost | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE-891 |
| Grips | Merida Expert TK |
| Miscellaneous | Front light: Herrmans H-Black MR4 E |
| Motor | Shimano EP5; 60Nm |
| Battery | Shimano EN604 Battery ; 418Wh |
| Controls | Shimano SC-EN500 |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
