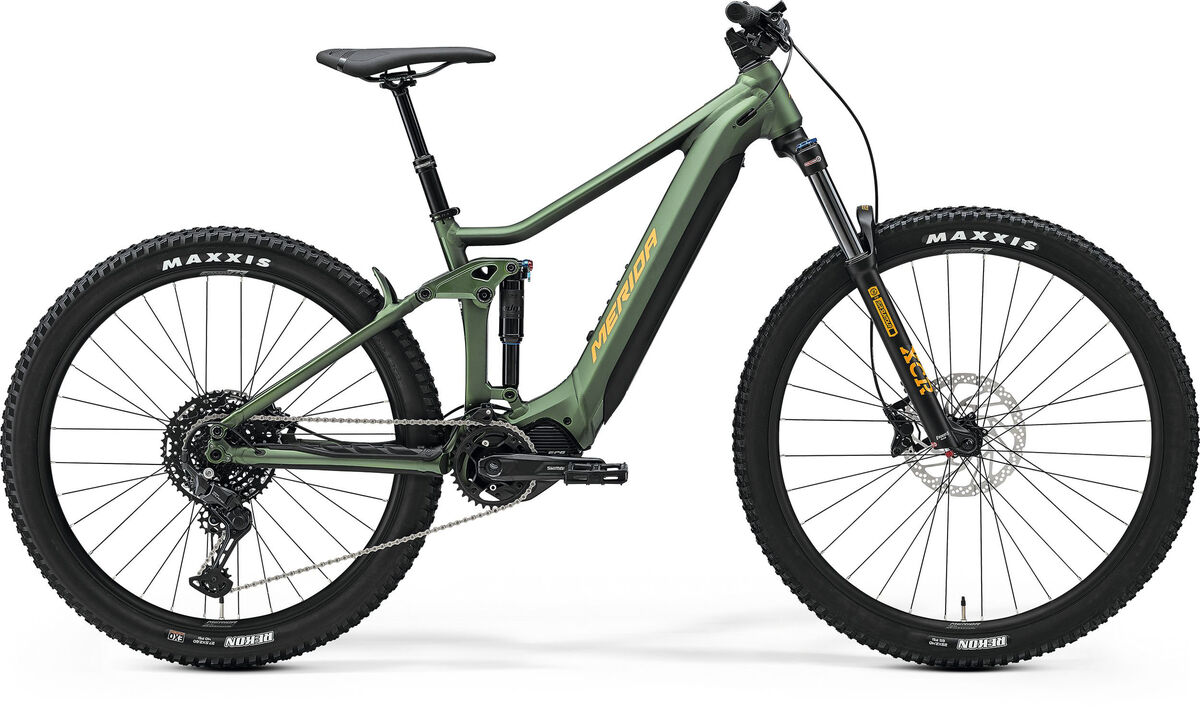

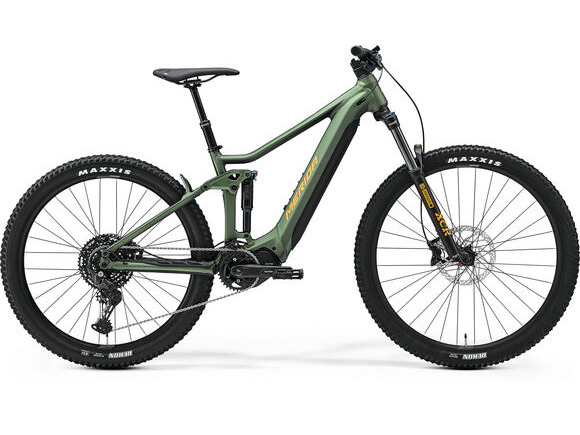

MERIDA eOne-Forty 400 SE - Green/Orange - MY24 2024
Pricing
£3700.00
| Model Year | 2024 |
|---|---|
| Options | S Green/Orange (Item# 4711256462660 P745) In Stock (Warehouse) M Green/Orange (Item# 4711256462653 P746) In Stock (Warehouse) L Green/Orange (Item# 4711256462646 P747) In Stock (Warehouse) XL Green/Orange (Item# 4711256462639 P748) In Stock (Warehouse) |
| Style | The entry into full suspension ebiking. Sleek aluminium frame housing a 630Wh battery to power the 85Nm Shimano EP6 motor. Suntour suspension and Shimano CUES 10 speed drivetrain. The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests gathering accolades and generally hogging the limelight! The eOne-Forty shares exactly the same frame and design features but has different ride characteristics. The shock stroke on the eOne-Forty is shorter reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding. The mixed wheel size set up is carried over to give the e-full suspension bikes precise steering fantastic 'rolling over obstacles' behaviour yet maximum traction a 29er front wheel with a 2.5 tyre is combined with a 650B rear wheel equipped with a slightly wider 2.6 tyre. The perfect combination of precision playfulness and traction. All eOne-Forty models use the powerful Shimano 85NM motor and Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising. |
| Frame | Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Forks | Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4" Shock SR Suntour RS21 Edge Plus 2CR -M6; lockout |
| Rear Derailleur | Shimano CUES U6000; GS |
| Shifters | Shimano SL -MT500-L dropper post lever and Shimano CUES U6000 |
| Chainset | Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | Shimano LG500 |
| Freewheel/Cassette | Shimano LG300; 11-48 teeth; 10 speed |
| Headset | Merida-8152 |
| Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Handlebars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano M4204 4 piston hydraulic disc brake caliper with Shimano RT30 203 mm rotor |
| Rear Brake | Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor |
| Brake Levers | Shimano |
| Rims | 29" / 27.5" Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148 x 12mm; 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Tyres | Front Tyre Maxxis Rekon; 29" x 2.4"; wire bead; dual Rear Tyre Maxxis Rekon; 27.5" x 2.6"; wire bead; EXO |
| Saddle | Merida Comp SL with V-mount |
| Seatpost | Merida Comp TR; 30.9mm diameter; in-line; M 100mm - L/XL 125mm - XXL 150mm seat post travel |
| Pedals | VP Components - VPE-537 |
| Grips | Merida Expert EC |
| Miscellaneous | CG-119PG front light, CG-404RG rear light Shimano Satellite charging port; EW-CP100 |
| Motor | Shimano Steps EP6; 85Nm |
| Battery | Shimano EN806; 630Wh internal battery Charger Shimano EC-E6002; 2A charging current |
| Controls | eBike Display Shimano SC-EN600 Power Button CAP-045, Merida Power Button Mode Switch Shimano SW-EN600-L |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
